CCTM-MTA : Offer for accessories and equipment of CCTM modular tank system

Modular tank accessories for equipping of the CCTM tanks

MTA additional armatures are optional accessories for equipping of the basic tanks. The required configuration of the modular tanks is reached by equipping the basic tank with appropriate combination of additional armatures.


CCTM-MTA modular tank components - basic tanks and accessories

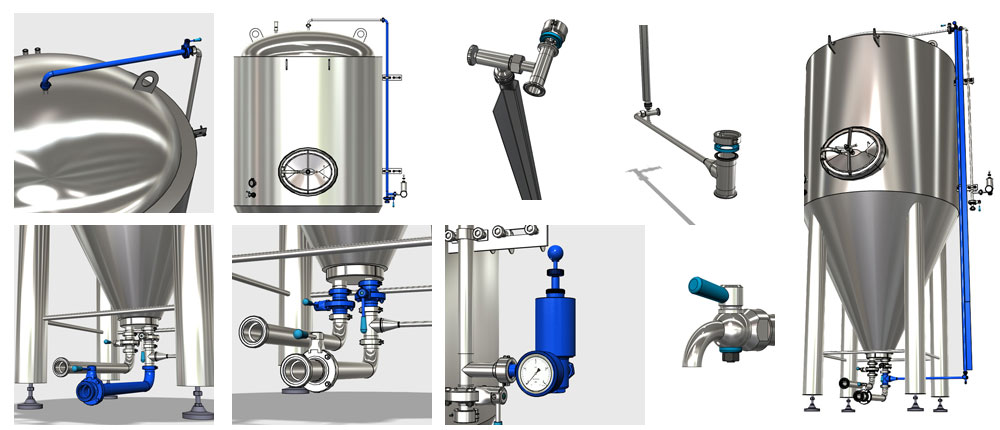

Components of the CCTM modular cylindrical-conical tank system
COMPONENTS PICTURE 1 PICTURE 2 DESCRIPTION MORE
BT - basic tank Presure vessel produced of stainless steel AISI 304 according to European standards for food production equipment. Smooth inner surface (2B/2J) with roudness according tu customer´s requirement. Cylindrical upper part and conical lower part optimalized to beer, cider, wine or must production. Two pressure variants 0.5 bar/3.0 bar, three quality variants Standard Quality / High Quality / Top Quality. Descriptions and prices
TO1 - tank filling-draining disc Bottom multifunction disc is an armature screwed on the basic tank in the bottom throat. It includes two welded pipes with the TriClamp throats for joining with RO1, DO1 or RO2, DO2 parts : The product filling-draining pipe and the full content draining pipe. The product pipe may be fixed or segmented for easy setting level its length according to yeast in the tank. Descriptions and prices
CS1 - upper sanitizing pipe Upper sanitation armature is useful for connecting the CP sanitation inlet to the SB1 shower sprayball, CS2 side sanitizing pipe as well as for connecting the LIS level indicator. We can produce it with valve or without valve. Descriptions and prices
CS2 - side sanitizing pipe This armature is connected to CS1 upper sanitation pipe or also to the LIS level indicator (if is used with the tank). It is equipped with butterfly valve, ended with socket TriClamp or Dairy Coupler for connecting with the sanitation hose. Descriptions and prices
LIS - fill level indicator set The fill level indicator allows visual monitoring an actual level of the product in the tank. Recommended when the tank is used for bottling, filtering or drafting drinks to a pub. The fill level indicators are often required also by custom officers to control of an alcohol production process. Descriptions and prices
RV - relief valve with manometer The relief valve is very important equipment to visual control of the fermentation and maturation process during beer, cider or wine production, adjusting required pressure and monitoring of actual pressure CO2 in the tank. Joined with the TriClamp to CS2 pipe. Descriptions and prices
RO1-DO1 tank filling-draining pipes RO1 and DO1 are pipes designed for easy joining of hoses with the TO1 filling-draining disc. They may be joined directly to the TO1 armature or also to RO2, DO2 valves, or also LIS level indicator, that are placed under the TO1 disc, according to current configuration of the tank. The pipes may be equipped with the flap valves. Descriptions and prices
RO2-DO2 tank filling-draining flap valves RO2 and DO2 are flap valves that may be connected to the TO1 disc as terminated part or also between TO1 and other parts (RO1, RO2, LIS) according to current configuation of the tank. Available with TriClamp, Dairy Couplers or combination of both types. Descriptions and prices
SV1 - sample valve Sample ball valve (sampling cock) for purchasing samples of produced beverage from the tank during the drink production process. It is conected to SV port with the basic tank (TriClamp) Descriptions and prices
SB1 - sanitizing spray ball The spray ball is part designed to easy cleaning and sanitizing of the tanks using the CIP station with the pump and sanitizing solutions. It is joining with the tank with a split pin to the CP port inside the tank. Available two types - fixed spray ball and spray with rotational head. Descriptions and prices
CC1 - carbonation candle Beverage carbonation stone is the optional accessory of modular cylindrical-conical tanks. Its function is carbonation of beverage inside tank. This equipment is often used as final operation during the beer or cider production process before filling beverage into packages. It may be inserted to the basic tank and joined with the tank using the MT multiport (TriClamp) Descriptions and prices
PFH - 3way product filling hub PFH is a special tool to easy filling of product (like beer wort , cider must) to the fermentation tank. It is pipe hub with, one product input, two product outputs a sight glass and two butterfly valves. It is an optional accessory for all types of cylindrical-conical tanks. Available with TriClamp or Dairy Couplers. Descriptions and prices
LAD - ladder The optional part of the CCT-M tank : The ladder allows easy access to upper part of the tank – for example to connection and disconnection of the CIP pipes and the fill level indicator. The ladder is safely fixed with the basic tank using the LC hooks welden on the tank. Descriptions and prices

CCT-M recommended sets equipment and features comparation table

Comparation table with all recommended sets of the CCT-M modular cylindrical-conical fermentation-maturation tanks. Equipment and features of the recommended configurations.
CCT-M configurationA1A2A3B1B2
EQUIPMENT AND ACCESSORIES
TO1 : filling and draining discFIXFIXFIXFIXVARIO
RO1 : Product pipe without flap valve-YES-YES-
RO1 : Product pipe with flap valve--YES-YES
DO1 : Draining pipe without flap valve-YES--YES
DO1 : Draining pipe with flap valve--YES--
RO2 : Clear product flap valve-YES--YES
DO2 : Tank draining flap valve-YES--YES
SB1 : Sanitizing spray ball FIXYESYESYESYESYES
CS1 : Upper sanitizing pipe without flap valveYESYESYES--
CS1 : Upper sanitizing pipe with flap valve---YESYES
CS2 : Side sanitizing pipe with flap valveYESYESYESYESYES
RV - Pressure relief valve with manometerYESYESYESYESYES
LIS : Filling level indicator set - level gauge---YESYES
SV1 : Sample cock with ball valveYESYESYESYESYES
CC1 : Carbonization candle with porous stoneoptionaloptionaloptionaloptionaloptional
PFH : 3-way product filling pipe for wortoptionaloptionaloptionaloptionaloptional
LAD – Ladderoptionaloptionaloptionaloptionaloptional
FEATURES & FUNCTIONS
Primary fermentation without pressure (beer / cider / wine )YESYESYESYESYES
Secondary fermentation under pressure (beer / cider / wine )3bar version3bar version3bar version3bar version3bar version
Carbonization (beer / cider / wine )3bar version3bar version3bar version3bar version3bar version
Non-izobaric filling of beverage into bottles and kegsYESYESYESYESYES
Izobaric filling of beverage into bottles and kegs3bar version3bar version3bar version3bar version3bar version
Monitoring of the actual beverage level in the tank---YESYES
Installation / dismounting of the level gauge during operation (the tank is under pressure)YESYESYESYESYES
Mounting / dismounting the level gauge when there is no beverage in the tank----YES
Cleaning and sanitizing the level gauge during operation (the tank is under pressure)---YESYES
Cleaning and sanitizing the level gauge when there is no beverage in the tank----YES
Cleaning and sanitation of RO1 and DO1 armatures during operation (the tank is under pressure)----YES
Preventing the rotting of yeast in uninsulated parts of the tankYESYES--YES
Manual cleaning of the product armature when the tank is full.YESYES--YES
Possibility of connecting carbonization stone3bar version3bar version3bar version3bar version3bar version
Possibility connecting the hops extractorYESYESYESYESYES
Flotation machine can be connectedYESYESYESYESYES
Equipment for the complete beer fermentation process3bar version3bar version3bar version3bar version3bar version
Equipment for the complete cider fermentation process3bar version3bar version3bar version3bar version3bar version
Equipment for the complete wine fermentation processYESYESYESAYESYES
Equipment for the complete sparkling wine fermentation process3bar version3bar version3bar version3bar version3bar version
Equipment for the complete fruit juice production processYESYESYESYESYES
Option to change configurationYESYESYESYESYES
