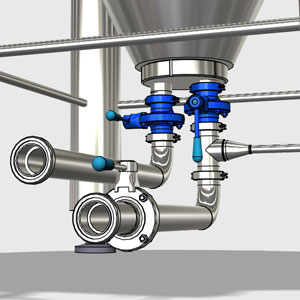

RO2-DO2 Tank filling-draining flap valves

RO2 and DO2 are flap valves that may be connected to the TO1 disc as terminated part or also between TO1 and other parts (RO1, RO2, LIS) according to current configuation of the tank. Available with TriClamp, Dairy Couplers or combination of both types.

RO2 – beverage product flap valve – the armatury is intended to filling tank with the beverage product and draining a clear product from the tank. A beverage is sucked above level of yeast in lower part of cone of the tank.  We produce the RO2 armature with more types of connections (Dairy coupling / TriClamp) and with more diameters of the pipes. The armature RO2 is attached either to the TO1 bottom tank filling-draining disc and the RO1 product filling pipe, or there may be also LIS fill level indicator inserted between RO1 and RO2 parts.





DO2 – tank full content draining flap valve –the armature is intended to fully draining content from the tank to a severage canal, or also for  collecting of yeast drained from a bottom of the tank. We produce the DO2 armature with more types of connections (Dairy coupling / TriClamp) and with more diameters of the pipes. The armature DO2 is attached either to the TO1 bottom tank filling-draining disc and the RO1 product filling pipe.


Offer for the  RO2-DO2 tank filling-draining flap valves :

  • TEA-DVS-DN5050TC Disc valve DN50TC/DN50TC

    Price: 189 €

    Disc (butterfly) valve with inlet DN50 (also NW50) DIN 32676 “TriClamp” and outlet DN50 (also NW50) DIN 32676 “TriClamp”, with security locking device and sealing caps. For use with pressure tanks equipped with DIN 32676 “TriClamp” DN50 throat-connection . Fully sanitable equipment designed for food production technologies.

  • TEA-DVS-DN4040TC Disc valve DN40TC/DN40TC

    Price: 174 €

    Disc (butterfly) valve with inlet DN40 (also NW40) DIN 32676 “TriClamp” and outlet DN40 (also NW40) DIN 32676 “TriClamp”, with security locking device and sealing caps. For use with pressure tanks equipped with DIN 32676 “TriClamp” DN40 throat-connection . Fully sanitable equipment designed for food production technologies.

  • TEA-DVS-DN3232TC Disc valve DN32TC/DN32TC

    Price: 165 €

    Disc (butterfly) valve with inlet DN32 (also NW32) DIN 32676 “TriClamp” and outlet DN32 (also NW32) DIN 32676 “TriClamp”, with security locking device and sealing caps. For use with pressure tanks equipped with DIN 32676 “TriClamp” DN32 throat-connection . Fully sanitable equipment designed for food production technologies.

  • TEA-DVS-DN2525TC Disc valve DN25TC/DN25TC

    Price: 154 €

    Disc (butterfly) valve with inlet DN25 (also NW25) DIN 32676 “TriClamp” and outlet DN25 (also NW25) DIN 32676 “TriClamp”, with security locking device and sealing caps. For use with pressure tanks equipped with DIN 32676 “TriClamp” DN25 throat-connection . Fully sanitable equipment designed for food production technologies.

  • TEA-DVS-DN5050DT Disc valve DN50DC/DN50TC

    Price: 161 €

    Disc (butterfly) valve with inlet DN50 (also NW50) DIN 11851 “Dairy Coupling” (cone+nut side) and outlet DN50 (also NW50) DIN 32676 “TriClamp”, with security locking device and sealing caps. For use with pressure tanks equipped with DIN 11851 “Dairy Coupling” DN50 throat-connection . Fully sanitable equipment designed for food production technologies.

  • TEA-DVS-DN4040DT Disc valve DN40DC/DN40TC

    Price: 149 €

    Disc (butterfly) valve with inlet DN40 (also NW40) DIN 11851 “Dairy Coupling” (cone+nut side) and outlet DN40 (also NW40) DIN 32676 “TriClamp”, with security locking device and sealing caps. For use with pressure tanks equipped with DIN 11851 “Dairy Coupling” DN40 throat-connection . Fully sanitable equipment designed for food production technologies.

  • TEA-DVS-DN3232DT Disc valve DN32DC/DN32TC

    Price: 142 €

    Disc (butterfly) valve with inlet DN32 (also NW32) DIN 11851 “Dairy Coupling” (cone+nut side) and outlet DN32 (also NW32) DIN 32676 “TriClamp”, with security locking device and sealing caps. For use with pressure tanks equipped with DIN 11851 “Dairy Coupling” DN32 throat-connection . Fully sanitable equipment designed for food production technologies.

  • TEA-DVS-DN2525DT Disc valve DN25DC/DN25TC

    Price: 134 €

    Disc (butterfly) valve with inlet DN25 (also NW25) DIN 11851 “Dairy Coupling” (cone+nut side) and outlet DN25 (also NW25) DIN 32676 “TriClamp”, with security locking device and sealing caps. For use with pressure tanks equipped with DIN 11851 “Dairy Coupling” DN25 throat-connection . Fully sanitable equipment designed for food production technologies.


Other types of the RO2-DO2 flap valves …


Diagram with locations expansion fittings of the modular system CCTM

MTA additional armatures are optional accessories for equipping of the basic tanks. The required configuration of the modular tanks is reached by equipping the basic tank with appropriate combination of additional armatures.
