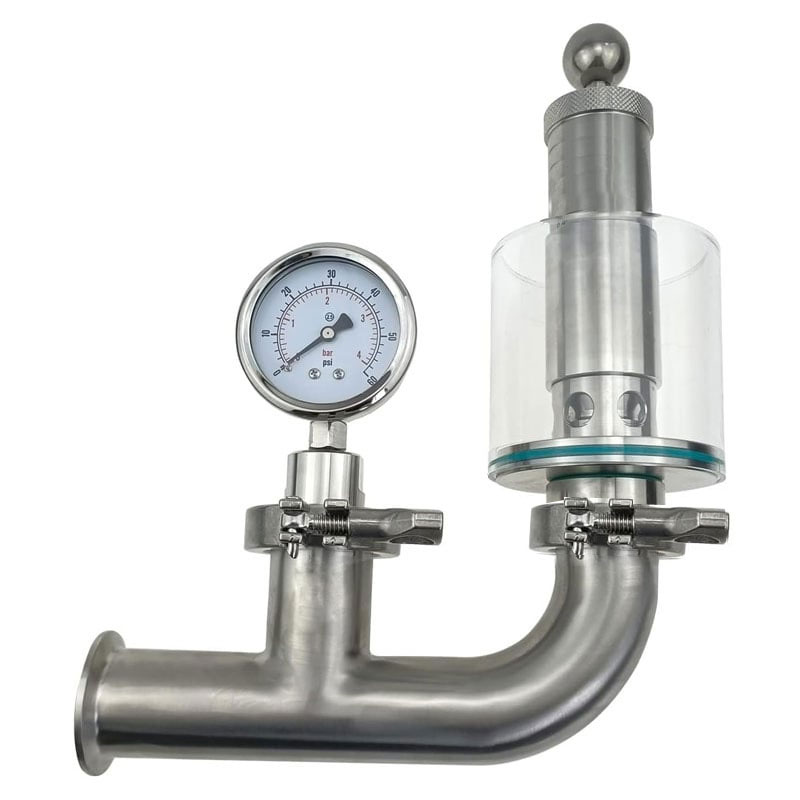

RV1 – Relief valve with manometer

Relief valve with manometer and fermentation lock DN25 TC is an extension equipment to the monitoring of current pressure and setting of required pressure in the tank. Also the fermentation lock is included in this part to visual monitoring of the fermenting process in the tank. Connection : Side connection (to the CS2 pipe) DIN 32676 “Tri Clamp” ⌀50.5mm DN 25 / NW 25. Adjustable pressure in the tank from 0 bar to 3.0 bar using the regulation screw with the spring.

MTS RV1 B2 600x600 1 - RV1 - Relief valve with manometerMTS RV1 005 600x600 - RV1 - Relief valve with manometer

MTS RV1 006 600x600 1 - RV1 - Relief valve with manometerMTS RV1 007 600x600 - RV1 - Relief valve with manometer

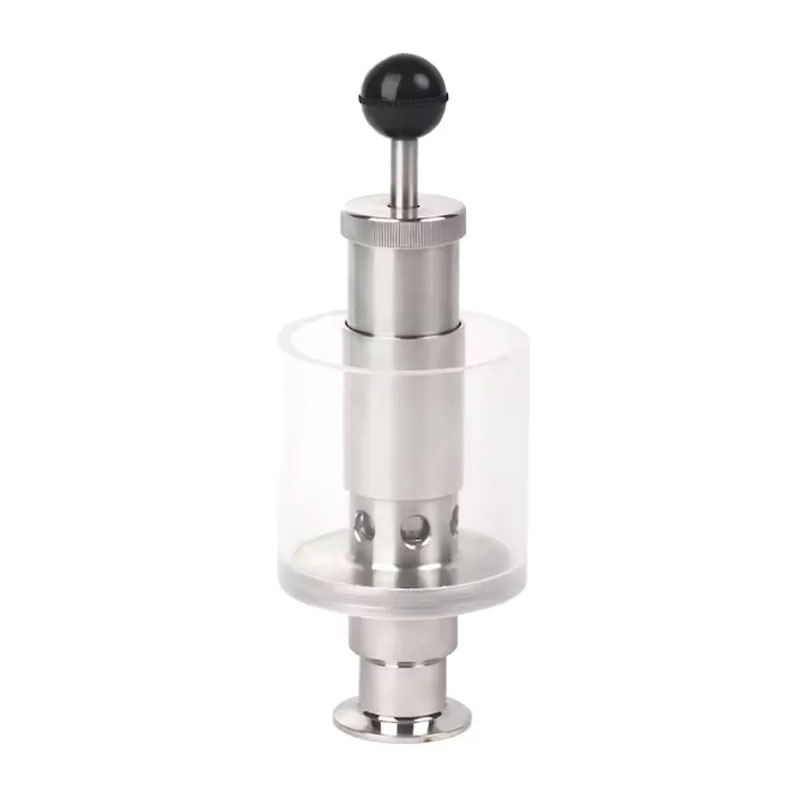

73100015079100 RV1 technical drawing 400x800 - RV1 - Relief valve with manometerThe relief valve consists of these parts :

  1. Stainless steel body (housing)
  2. Manual rod of a relief valve – pulling the handle may be reduced an overpressure in the tank
  3. Locking screw of a spring chamber
  4. Setting screw – can set the resistance of the valve spring and this way is possible to fine regulate the desired pressure in the tank
  5. Upper spring seat – a firm fixing of the spring in the upper part of the chamber
  6. Spring – it pushes on the lower seat and creates a back pressure for the valve
  7. Valve seat – it leaks into the set overpressure, it is raised to overcome of the set pressure and let gas to flow out from the tank
  8. Sleeve of the set screw with an internal thread
  9. Unused
  10. The crucible – fermentation lock – it is designed for visual inspection of fermentation process after filling with water – CO2 bubbles through the water seal
  11. Ball rod for manual exhaust port
  12. Seal cup of the fermentation lock
  13. Attaching connector TriClamp DN26 for diameter of the clamp 50,5 mm
  14. Manometer – gauge for monitoring the current pressure in the tank




Offer for the RV1 relief valve with manometer :

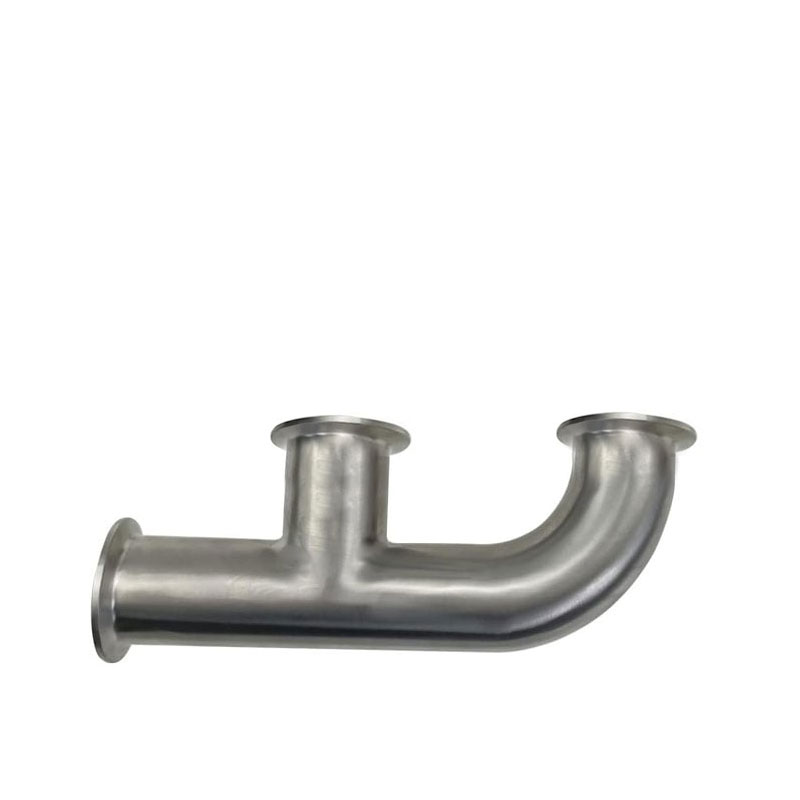

[simple-rss feed=”https://eshop.czechminibreweries.com/product-category/bpt/cct-ccf/cctm/mta/mts-rvm/feed/?post_type=product” limit=”40″ show_date=”0″ hide_description=”0″ show_images=”1″ hide_url=”0″ amount_of_words=”80″ ]


Diagram with locations expansion fittings of the modular system CCTM

MTA additional armatures are optional accessories for equipping of the basic tanks. The required configuration of the modular tanks is reached by equipping the basic tank with appropriate combination of additional armatures.

CCT M scheme 03EN 1000x900 - RV1 - Relief valve with manometer
