Operate your own original Czech Micro Brewery

1-solution: Adjustable racking valve for CCT

1-st solution – BREWORX VARIO CCT´s

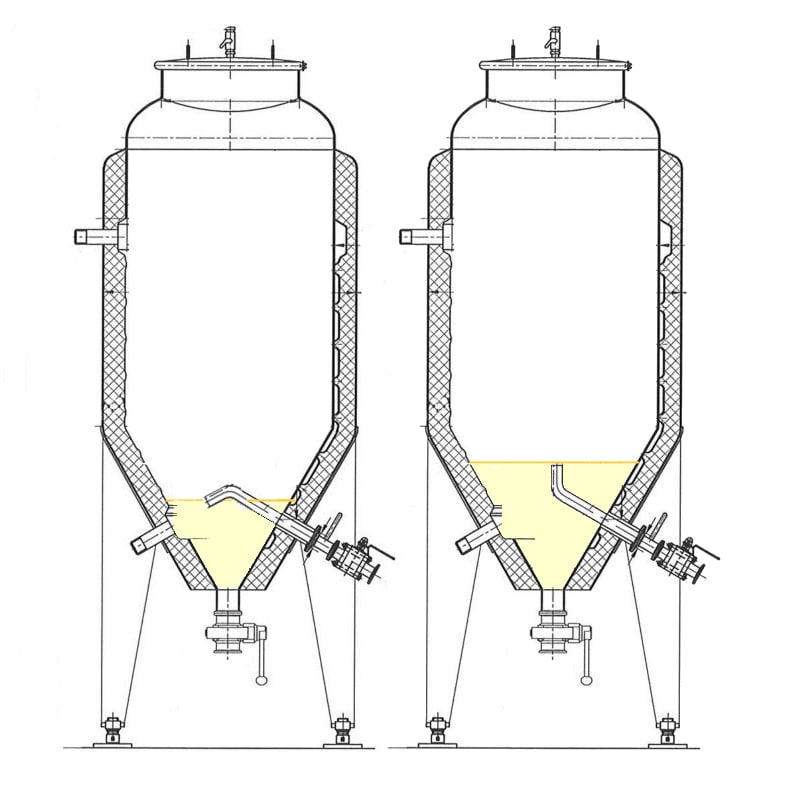

cct-001BREWORX-VARIO-CCT-scheme

An adjustable racking valve system for easy separation of yeast from the product (beer, cider, wine …) in fermentation cylindrical-conical tanks without loss of product residues. Our system allows the precise height setting of the outlet pipe suction hole just above the actual level of yeast in the tank.

adjustable-cct-racking-valve-schemeadjustable-cct-racking-valve-04adjustable-cct-racking-valve-01

No more product loss – no unusable residues in the tanks !

  • This fitting is designed for using with the pressuring tanks :
    • CCT – Cylindrical-conical fermenters
    • MLT – Maturating-lagering tanks
  • The ARV fitting is equipped with rotating arm (from DN 25 to DN 80), glass sight glass, pressure seal, handling lever and drain valve (from DN 25 to DN 80).
  • Easy instalation on each type of a pressuring tank.



Your price :

  • SQ variations of fermenters – surcharge € 650
  • HQ variations of fermenters – included in the price



Certificates PED-ASME-GUM-GOST



Price list and technical description of typized CCT-C Cylindrical-conical tanks Classic :

  • CCT-100C Cylindrical-conical tank Classic insulated 100/122L

    Price: 5 888 €

    The Cylindrical-conical tank (CCT), Cylindroconical fermenter (CCF), with usable volume 100 liters and total volume 122 liters, for fermentation and maturation of beer, cider, wine and other beverages, in several variations, made of stainless food steel DIN 1.4301 (AISI 304).

  • CCT-150C Cylindrical-conical tank Classic insulated 150/180L

    Price: 6 011 €

    The Cylindrical-conical tank (CCT), Cylindroconical fermenter (CCF), with usable volume 150 liters and total volume 180 liters, for fermentation and maturation of beer, cider, wine and other beverages, in several variations, made of stainless food steel DIN 1.4301 (AISI 304).

  • CCT-200CI Cylindrical-conical tank Classic insulated 200/240L

    Price: 6 135 €

    The Cylindrical-conical tank (CCT), Cylindroconical fermenter (CCF), with usable volume 200 liters and total volume 240 liters, for fermentation and maturation of beer, cider, wine and other beverages, in several variations, made of stainless food steel DIN 1.4301 (AISI 304).

  • CCT-250C Cylindrical-conical tank Classic insulated 250/300L

    Price: 6 258 €

    The Cylindrical-conical tank (CCT), Cylindroconical fermenter (CCF), with usable volume 250 liters and total volume 300 liters, for fermentation and maturation of beer, cider, wine and other beverages, in several variations, made of stainless food steel DIN 1.4301 (AISI 304). The

  • CCT-300C Cylindrical-conical tank Classic insulated 300/360L

    Price: 6 505 €

    The Cylindrical-conical tank (CCT), Cylindroconical fermenter (CCF), with usable volume 300 liters and total volume 360 liters, for fermentation and maturation of beer, cider, wine and other beverages, in several variations, made of stainless food steel DIN 1.4301 (AISI 304).

  • CCT-400C Cylindrical-conical tank Classic insulated 400/480L

    Price: 6 752 €

    The Cylindrical-conical tank (CCT), Cylindroconical fermenter (CCF), with usable volume 400 liters and total volume 480 liters, for fermentation and maturation of beer, cider, wine and other beverages, in several variations, made of stainless food steel DIN 1.4301 (AISI 304).

  • CCT-500C Cylindrical-conical tank Classic insulated 500/600L

    Price: 7 177 €

    The Cylindrical-conical tank (CCT), Cylindroconical fermenter (CCF), with usable volume 500 liters and total volume 600 liters, for fermentation and maturation of beer, cider, wine and other beverages, in several variations, made of stainless food steel DIN 1.4301 (AISI 304).


…  other variations of CCT Profi-Classic







Specification and equipment HQ class SQ class LQ class
Production of the Czech Mini Breweries High quality Standard quality Low quality (N/A)
Competitors’ production (usual reality) rarely optional standard
Main fittings producers Europe Europe Asia
*** Inner surface – roughness Ra < 0.8 μm Ra = 0.8 μm Ra > 0.8 μm
*** Inner surface – sheen glossy semi glossy matte
Outer surface – united design yes no no
Connections of outer plates welved welved riveted
PU insulation > 50 mm > 40 mm < 40 mm
Thickness of the inner plates > 3 mm > 3 mm < 3 mm
Thickness of the outer plates > 1,5 mm > 1,5 mm < 1,5 mm
* Penetration test yes yes no
Design quality 100% 100% unspecified
Function quality 100% 100% unspecified
* Pressure relief valve – adjustable range 0 – 3 bar 0 – 3 bar 0 – 2 bar
* Pressure relief valve – with adjusting scale yes extra charge no
Level indicator – sanitable yes yes no
Level indicator – with scale yes extra charge no
Vacuum-overpressure aeration valve yes yes yes
** Independent safe overpressure valve 3.3 bar 3.3 bar no
Rotary shower – pressurizing nozzle yes yes extra charge
Racking valve above yeast yes yes yes
Racking valve with adjustable suction height yes extra charge no
Racking valve with sigh glass yes extra charge no
Yeast draining valve yes yes yes
Sampling valve – removable yes yes no
* Overpressure manhole (upper or side) yes yes yes
Cooling area of duplicators > 60% > 60% < 60%
* Manometer yes yes yes
Thermocouple for each cooling zone yes yes yes
* PED 97/23/EC certificate yes – always yes – always rarely
* ASME/GUM/GOST certificate optionally optionally rarely
Warranty 36 months 24 months 12 months

Legend : Asterisks: *= only for ovepressure tanks **= only for volumes more than 1000L ***= only for volumes more than 300L

pdf-download-document… Click for download of this offer in the printable PDF document .
