GSG – Gas steam generators

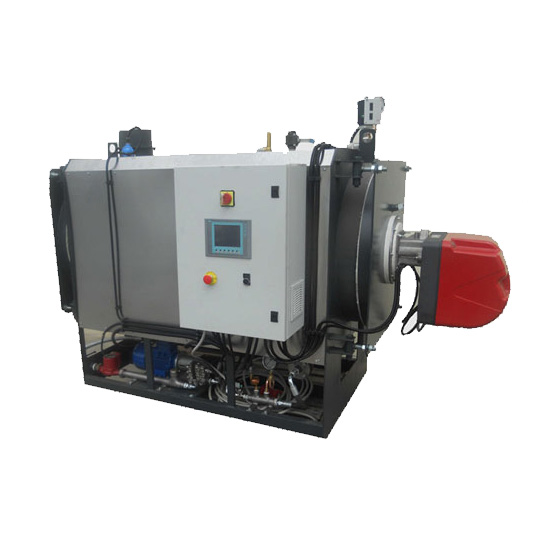

Gas steam generator for steam heating of brewhouses
Gas steam generators are a good solution especially for small breweries of medium and large sizes (from 10 HL) . The main reason for choosing a gas steam generator is the limitation of needed rated power (circuit breakers), which for larger brewhouse with an electric generator of steam or glycol heater would be very high. Gas steam generator can be used also for the combustion of light fuel oil, which is advantageous everywhere where there is no gas pipe. For our microbreweries we supply gas steam generators including all necessary accessories and installation work.
Gas steam generator typically includes:
- Gas steam generator
- Two-stage Riello burner for gas or light fuel oil (pellets)
- Positive pressure burner
- The stainless steel tank of filling / condensing water with a pump, controling of the water level and temperature, water valves, shut-off and safety valves
- Stainless steel sheeting insulation
- Water treatment plant
- Dosing pump
- Connection to the flue
- Connection to electricity distribution, water supply and sewerage
- Passport pressure equipment
- Initial inspection of gas appliances
Gas hot steam generators – price list and technical description :
- SSFS-MX54 : Complete set of stainless steel accessories for achieve pure steam (culinary quality) for 1 1/4″ steam pipe line
Complete set of stainless steel accessories for achieve pure steam (in culinary quality - for direct contact with food) based on the Spirax Sarco CSF16 Culinary Steam Filter, intended for a 1 1/4" steam pipe line. Intended for maximal steam pressure of 12 bar. Read more » - SSFS-MX64 : Complete set of stainless steel accessories for achieve pure steam (culinary quality) for 1 1/2″ steam pipe lineComplete set of stainless steel accessories for achieve pure steam (in culinary quality - for direct contact with food) based on the Spirax Sarco CSF16 Culinary Steam Filter, intended for a 1 1/2" steam pipe line. Intended for maximal steam pressure of 12 bar. Read more »
- SSFS-MX84 : Complete set of stainless steel accessories for achieve pure steam (culinary quality) for 2″ steam pipe lineComplete set of stainless steel accessories for achieve pure steam (in culinary quality - for direct contact with food) based on the Spirax Sarco CSF16 Culinary Steam Filter, intended for a 2" steam pipe line. Intended for maximal steam pressure of 12 bar. Read more »
- GSG-AS600 : Gas steam-generator ANFRA A.S. 422 kW | 600kg/hr | 12 barAutomatic gas steam-generator, available heating power of 422 kW - The production capacity 600 kg of hot steam per hour. Water feed can be connected directly to the water mains (if water is enough soft, maximaly 5°dH) or to a water treatment and the water / condensate mixing buffer tank. Regulation of the working steam pressure is adjustable in range from 1 up to 11.76 bar. The steam generator fulfils the requirements of the PED Directive 97/23/EC for pressure equipment. Produced in EU Read more »
- GSG-AS700 : Gas steam-generator ANFRA A.S. 488 kW | 700kg/hr | 12 barAutomatic gas steam-generator, available heating power of 488 kW - The production capacity 700 kg of hot steam per hour. Water feed can be connected directly to the water mains (if water is enough soft, maximaly 5°dH) or to a water treatment and the water / condensate mixing buffer tank. Regulation of the working steam pressure is adjustable in range from 1 up to 11.76 bar. The steam generator fulfils the requirements of the PED Directive 97/23/EC for pressure equipment. Produced in EU Read more »
- GSG-AS900 : Gas steam-generator ANFRA A.S. 627 kW | 900kg/hr | 12 barAutomatic gas steam-generator, available heating power of 627 kW - The production capacity 900 kg of hot steam per hour. Water feed can be connected directly to the water mains (if water is enough soft, maximaly 5°dH) or to a water treatment and the water / condensate mixing buffer tank. Regulation of the working steam pressure is adjustable in range from 1 up to 11.76 bar. The steam generator fulfils the requirements of the PED Directive 97/23/EC for pressure equipment. Produced in EU Read more »
- GSG-AS1000 : Gas steam-generator ANFRA A.S. 700 kW | 1000kg/hr | 12 barAutomatic gas steam-generator, available heating power of 700 kW - The production capacity 1000 kg of hot steam per hour. Water feed can be connected directly to the water mains (if water is enough soft, maximaly 5°dH) or to a water treatment and the water / condensate mixing buffer tank. Regulation of the working steam pressure is adjustable in range from 1 up to 11.76 bar. The steam generator fulfils the requirements of the PED Directive 97/23/EC for pressure equipment. Produced in EU Read more »
- GSG-AS1200 : Gas steam-generator ANFRA A.S. 837 kW | 1200kg/hr | 12 barAutomatic gas steam-generator, available heating power of 837 kW - The production capacity 1200 kg of hot steam per hour. Water feed can be connected directly to the water mains (if water is enough soft, maximaly 5°dH) or to a water treatment and the water / condensate mixing buffer tank. Regulation of the working steam pressure is adjustable in range from 1 up to 11.76 bar. The steam generator fulfils the requirements of the PED Directive 97/23/EC for pressure equipment. Produced in EU Read more »
- GSG-AS1500 : Gas steam-generator ANFRA A.S. 1046 kW | 1500kg/hr | 12 barAutomatic gas steam-generator, available heating power of 1046 kW - The production capacity 1500 kg of hot steam per hour. Water feed can be connected directly to the water mains (if water is enough soft, maximaly 5°dH) or to a water treatment and the water / condensate mixing buffer tank. Regulation of the working steam pressure is adjustable in range from 1 up to 11.76 bar. The steam generator fulfils the requirements of the PED Directive 97/23/EC for pressure equipment. Produced in EU Read more »
- GSG-AS2000 : Gas steam-generator ANFRA A.S. 1395 kW | 2000kg/hr | 12 barAutomatic gas steam-generator, available heating power of 1395 kW - The production capacity 2000 kg of hot steam per hour. Water feed can be connected directly to the water mains (if water is enough soft, maximaly 5°dH) or to a water treatment and the water / condensate mixing buffer tank. Regulation of the working steam pressure is adjustable in range from 1 up to 11.76 bar. The steam generator fulfils the requirements of the PED Directive 97/23/EC for pressure equipment. Produced in EU Read more »
